NuSkin Headquarters Expansion and Innovation Experience Center

Team

Architect

NBBJ; Gustafson Guthrie Nichol; Bohlin Cywinski Jackson

Contractor

Okland Construction Company

Stats

PROJECT TYPE

Office

COMPLETION

2014

PROJECT SIZE

509,946 ft² / 9.8 acres

MKA ROLE

Structural and Civil Engineer

Provo, UT

NuSkin Headquarters Expansion and Innovation Experience Center

MKA’s efforts on the NuSkin Campus began with the Innovation Experience Center (IEC) project that is comprised of two high-tech buildings connected via a four-story atrium. The seven-story "South Building" offers three office levels, two data center levels, and an architecturally significant penthouse above a large first-floor assembly space. The three-story "North Building" includes ground-level retail and upper-level laboratories.   Structural solutions for the South Building include steel trusses that support nine columns over the assembly area, and steel framing to reduce the weight of the structure. For the North Building, concrete framing controls vibration and minimizes framing depth. The atrium is enclosed by glass walls and a glass roof to maximize daylight. Additionally, shear walls in both buildings minimize seismic movement and simplify glass enclosure details.   MKA's civil design for the IEC included vacation of a public right-of-way in the heart of historic downtown Provo, streetscape and utility infrastructure improvements, on-site grading and paving to support the buildings, and incorporation of net-zero stormwater discharge solutions that treated and infiltrated on-site stormwater.   As the IEC project neared completion, MKA’s civil group was engaged to provide additional master planning support and full site design of the 2.3-acre campus. The expansion included a new jewel-box office building, gathering park and plaza above a below-grade garage, above-grade parking structure, and other ancillary buildings supporting the campus. The civil design involved re-routing major public utilities around the vacated streets, altering public rights-of-way to prioritize pedestrian mobility and greenspace, and incorporating net-zero stormwater solutions that treat and infiltrate private and public stormwater within the public right-of-way to recharge the groundwater.
Exterior daylight view of NuSkin's Innovation Experience Center's entry plaza and glass-walled four-story atrium
Exterior daylight view of NuSkin's Innovation Experience Center's entry plaza and glass-walled four-story atrium
NuSkin Headquarters Expansion and Innovation Experience Center
NuSkin Headquarters Expansion and Innovation Experience Center
NuSkin Headquarters Expansion and Innovation Experience Center

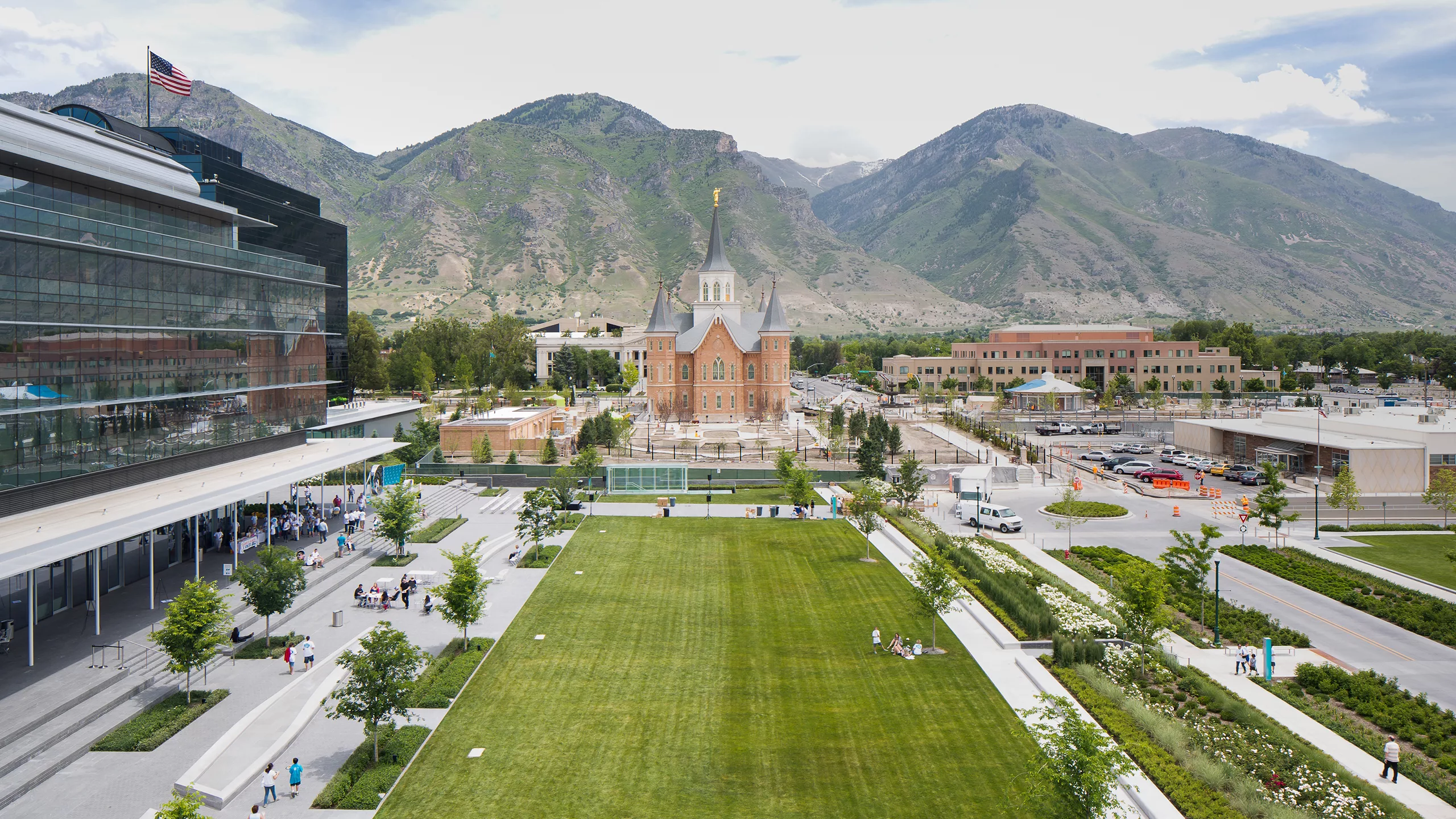

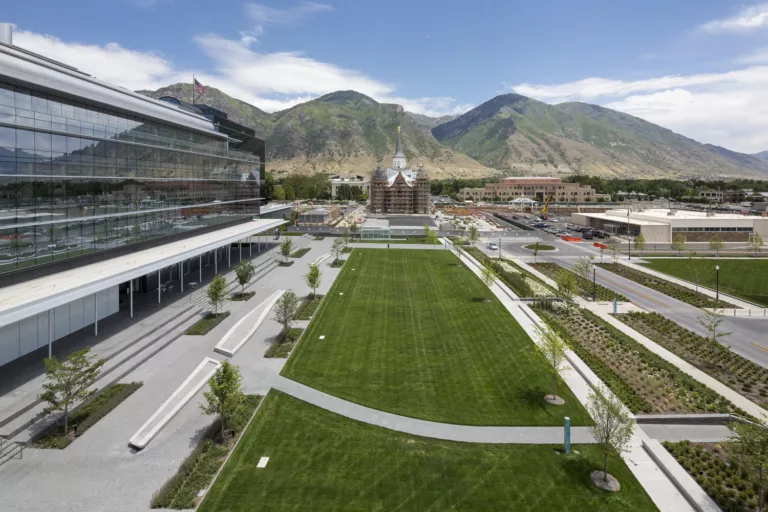

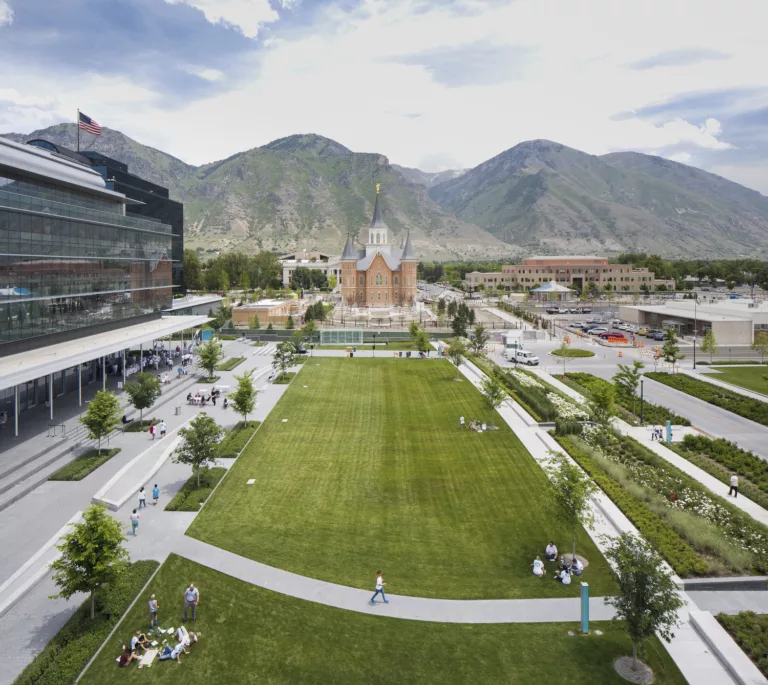

Exterior daylight view of the NuSkin Headquarters' central grounds populated by visitors and looking east toward the Provo City Center Temple
